Cylindrical Locksets

TA2000 Series

Product Brief

TA2000 Series bring to you extra heavy duty cylindrical locks which are complies with ANSI A156.2 Grade 1 requirements. TA2000 featuring special lever designs make it suitable for ADA compliant applications. TA2000 series is also designed for use on 3-hour fire-rated doors and for all positive pressure applications. It comes with a choice of special lever and knob design to meet the aesthetic requirements of your project.

Technical Data

Areas of Application : For wooded or metal doors which are very frequently used in residential units, public, commercial buildings, hotel and hospitals.

Door Dimensions: Door Thickness

Areas of Application: For wooded or metal doors which are very frequently used in residential units, public, commercial buildings, hotel and hospitals.

Door Dimensions: Door Thickness:

Lever Locks (35 mm) to (48 mm) Thick

Knob Locks (35 mm) to (52 mm) Thick

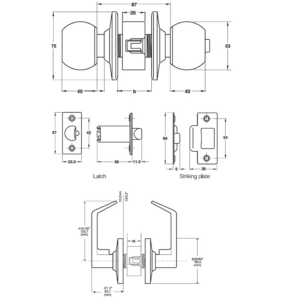

Lock Dimensions:

Case Size: (110mm x 152mm x 25mm)

Door Preparation: ANSI A115.1

Backset: (70 mm Only)

Faceplate: ( 57mm x 28mm)

Latchbolt: (13.5mm throw)

Material:

Latch bolt: Stainless Steel or Brass

Front: Stainless Steel or Brass

Rose: Stainless Steel or Brass

Internal Working Parts: High Strength Steel Alloy

Cylinder: Brass

Lever: Solid Zinc

Knob: Stainless Steel

Handing: TÜR Non Handed.

Finishes: 626(Lever Design) 630(Knob Design Only) (Other finishes available upon request)

Options: Split Finishes available upon request

Keying: Solid Brass 6-pin tumbler cylinder with 2 nickel plated keys per lock

Standard Mortise Cylinders

Heavy duty commercial Grade Cylindrical Lockset, designed for Maximum Security, Heavy Traffic Usage

• Fast and Easy Installation
• Freewheeling available
• Quality cast and machined stainless steel hubs mounted with heavy duty return springs tested over one million

cycles without any visible lever sag.

• Heavier rose liners material provides more attack resistance.
• Threaded roses on both sides hold lock firmly in place
• Heat treated heavy gauge cold rolled steel spindles withstand 1000 inch pound of torque applied to the locked

lever without gaining access.

• Threaded outside rose assembly adjustable for door thickness without removing keyed lever.
• Internal steel mechanisms are corrosion treated for normal atmospheric conditions.
• TÜR, Non handed
• Latch bolt features an anti thrust tongue for smooth closing
• Stop works incorporated into thumb mechanism
• ASA (22mm x 31mm) strike standard
• Fasteners are concealed under the rose/escutcheon.
• Option of different lever and designs with possibility of split finish
• Front adjustable for flat or beveled doors
• Master keying: Can be master keyed or Grand Master keyed.
• Finishes: 626, 605, 606, 612, 613, 616, 619, 620, 622, 625, 630 (Only for knob design)

Certifications

ANSI/BHMA: Meets the requirements of ANSI/BHMA A156.2 Bored & Preassembled Locks & Latches Grade 1

UL: UL Listed for use on upto 3 hours fire rated doors.

ADA: Meets the requirements of Americans with Disabilities Act when used with levers.

Strike Plate

How to order

Brand Identity	Model No:	Function	Type	Cylinder	Options	Finish
TA	20 Cylindrical Grade 1	75 – Passage	-(None)	W	-(None)	630
	20 Cylindrical Grade 2	09 – Office	KK -Key in Knob	LIC	AM – Anti-microbial	605
	20 Cylindrical Grade 3	84 – Classroom	HT-Hospital Tip	IC	ET-Electric Through Wire	606
	23 Tubular	86 – Storeroom			ELRX	625
		53 – Entry			EURX	626
		01 – Dummy				612
		76 – Privacy				613
		87 – Institutional

Ex: TA2075.KK.W.630

Specification:

All cylindrical Locksets shall meet to Grade 1 requirements and must be suitable for use on fire doors up to 3 hours.
